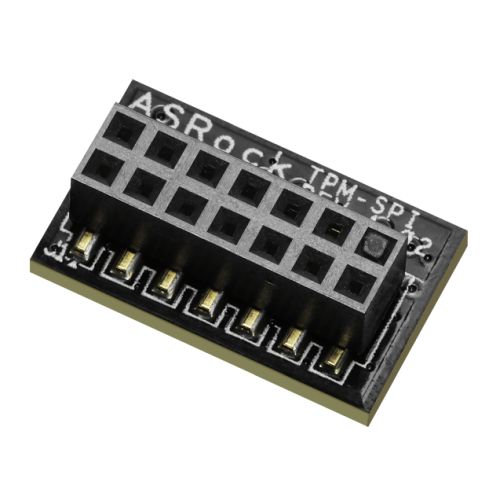

Asrock (TPM-SPI) TPM Module, 14-1 TPM Header, SPI Interface, Family 2.0, Level 00, Revision 01.16

21.50

Asrock (TPM-SPI) TPM Module, 14-1 TPM Header, SPI Interface, Family 2.0, Level 00, Revision 01.16

Out of stock

SKU: ASMBTPM-SPI Category: Tag:

Description

Compliant to TPM Main Specification, Family “2.0”, Level 00, Revision 01.16

  • SPI interface
  • Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
  • Random Number Generator (RNG) according to NIST SP800-90A
  • Full personalization with Endorsement Key (EK) and EK certificate
  • Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
  • PG-VQFN-32-13 or PG-UQFN-32-1 package
  • Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
  • Optimized for battery operated devices: low standby power consumption (typ. 110µA)
  • 24 PCRs (SHA-1 or SHA-256)
  • 7206 Byte free NV memory
  • Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
  • Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
  • Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
  • Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
  • Up to 8 NV counters
  • Up to 1 kByte for command parameters and response parameters
  • 1280 Byte I/O buffer

*Supported on X570 and newer platform motherboards.

Description

Specification

  • Designed for: TPM Ready Asrock Motherboards
  • Function: “The TPM is a secure cryptoprocessor, which is designed to secure hardware by integrating cryptographic keys”
  • Interface: SPI interface
  • Pin Dimension: 14-1pin
  • Package Weight: 0.0200 kg
  • Warranty: 3 Year Replacement Warranty
