Description

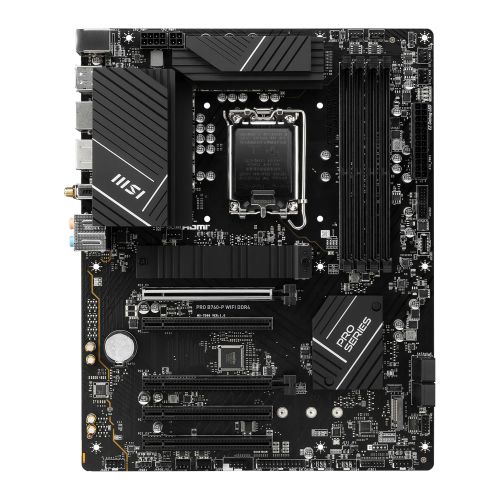

PRO B760-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Business Elegance Redefined
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1700
- Chipset: Intel B760
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: “DDR4 (Dual Channel)
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)” - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 2 x PCIe 4.0 x16
3 x PCIe 3.0 x1 - Storage: 4 x SATA III
2 x M.2M.2_1 (22110/2280/2260/2242) – PCIe 4.0 x4
M.2_2 (2280/2260/2242) – SATA & PCIe 4.0 x4 - RAID: “Supports RAID 0, 1, 5 and 10 for SATA storage devices”
- Wireless: “Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA” - LAN: 2.5GB LAN
- Audio: Realtek ALC897 Codec
7.1-Channel High Definition Audio - USB Ports Supported: Rear:
1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
4 x USB 2.0Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type-A
4 x USB 2.0 - Back Panel I/O Ports: 1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
4 x USB 2.0
1 x DisplayPort 1.4
1 x HDMI 2.1
1 x RJ-45
1 x Audio Line In
1 x Audio Line Out
1 x Microphone In
1 x S/PDIF Optical Out
2 x SMA Antenna - Internal I/O Connectors: 1 x Power (ATX_PWR)
2 x Power (CPU_PWR)
1 x CPU Fan
1 x Pump Fan
5 x System Fan
2 x Front Panel
1 x Chassis Intrusion
1 x Front Audio
1 x Printer Port
1 x Com Port
2 x Addressable V2 RGB LED
1 x RGB LED - .: 1 x TPM pin TPM 2.0
4 x USB 2.0
2 x USB 5Gbps Type-A
1 x USB 5Gbps Type-C - Accessories: EU Regulatory Notice
Quick Installation Guide
EZ M.2 Clip
SATA Cable
Wi-Fi Antenna
I/O Shield - Additional Features: See Overview
- Package Type: Retail
- Package Weight: To be confirmed
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
