Description

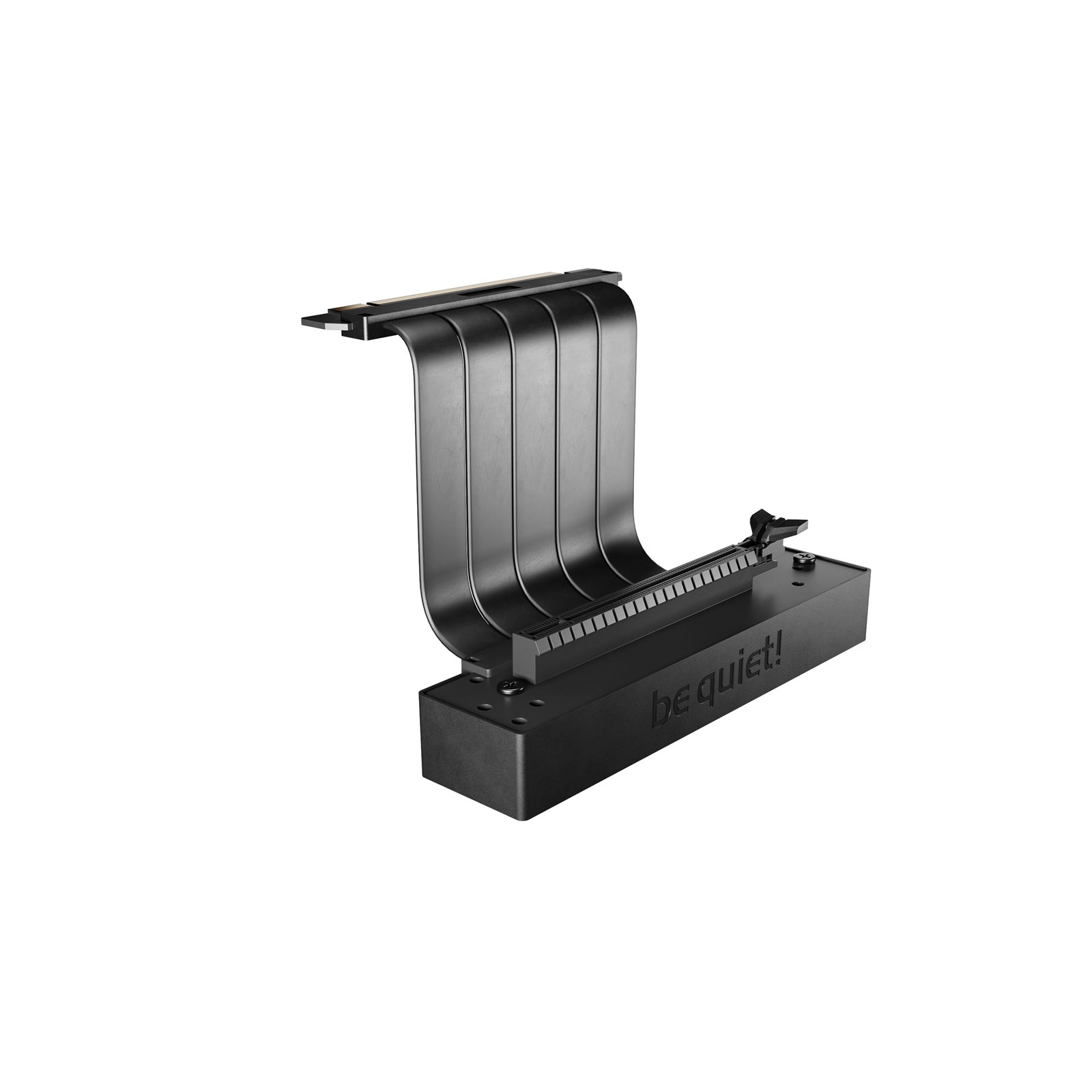

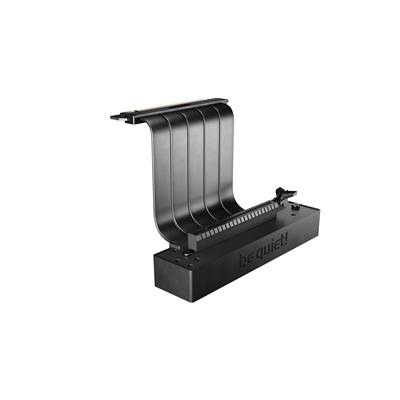

The BGA12 riser cable is designed to enable clean and reliable vertical GPU mounting in PC cases that support this layout. It features a PCI-Express 4.0 x16 connection, ensuring full bandwidth for modern graphics cards without performance loss. Crafted with flexible, tangle-free cables and an elegant all-black aesthetic, it’s engineered to fit seamlessly inside compatible cases.

A foam-lined support base is included to prevent GPU sag—placed on the PSU shroud, it self-adjusts to the appropriate height, ensuring a sturdy setup. Developed with precision engineering, the product is backed by a 3-year manufacturer’s warranty.

Specifications

Model:
Riser Cable BGA12

MPN:
BGA12

EAN:
4260052190227

Interface:
PCI-Express 4.0 x16

Cable Length:
200 mm

Color:
Black

Support Base:
Foam-lined, auto-adjusts height

Compatible Cases:
Dark Base Pro 901 / 701 / 700, Silent Base 802 / 801 / 601, Shadow Base 800, Pure Base 501, Light Base series

Warranty:
3 years

Dimensions (Packaged):
315 x 162 x 38 mm

Weight (Packaged):
Approx. 0.22 kg

Key Features

• Full PCIe 4.0 x16 bandwidth for uncompromised GPU performance
• Flexible and tangle-free cable for easy routing
• Foam support base prevents GPU sag
• All-black design for clean aesthetics
• Compatible with major vertical GPU case layouts
• Backed by 3-year warranty

Ideal Use Cases

• PC builds using vertical GPU orientation
• Builders aiming for visible GPU showcase through side panels
• Systems requiring clean and professional internal cable layouts
• High-performance setups with PCIe 4.0 GPUs

What’s in the Box

• BGA12 PCIe 4.0 riser cable (200 mm)
• Foam-lined support base
• User manual and warranty information
