Description
Adds 2 USB Type A ports (5Gbps), an HDMI port and an SD card reader to your notebook
Integrated 1.4m USB Type C cable for convenient and flexible laptop charging
Supports max. HDMI resolution up to Ultra HD 4K 30Hz
USB Power Delivery 3.0 capable up to 60W
2 year warranty

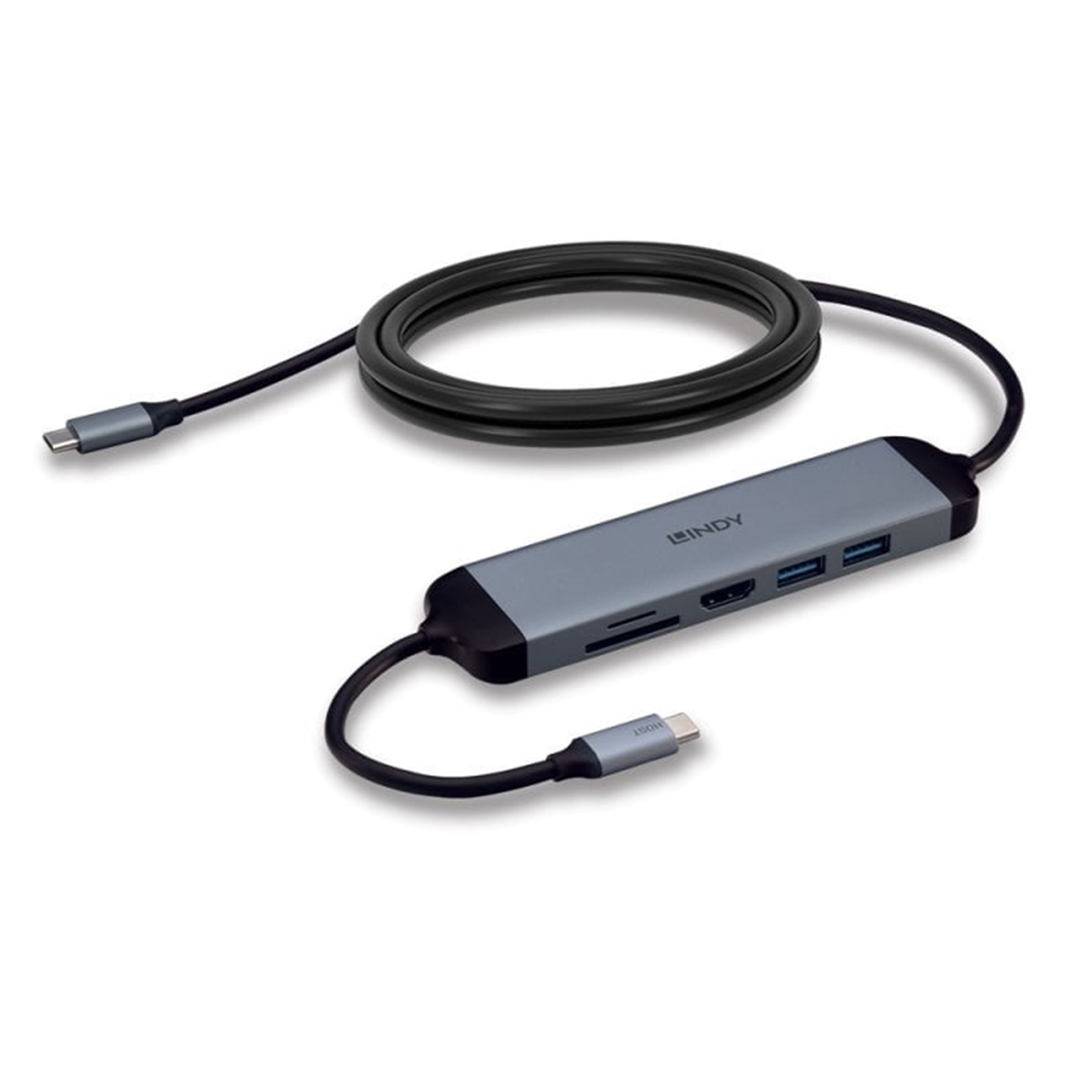

The DST-Micro 140 is a compact and versatile micro docking station designed to be adaptable for use in different environments. Part of Lindy’s expert docking station range, this product is ideal for those who travel with their tech and often find themselves in environments not built for laptop or desktop use. Housed in a robust aluminium body, this micro docking station is built to provide adaptability on the go.
The DST-Micro 140 unlocks connectivity for your device with SuperSpeed USB, microSD and SD Card Slots and a 4k capable HDMI® port. Pair this functionality with pass-through charging of up to 60W and the 1.4m power delivery cable and you are left with an incredibly adaptable and capable docking station.
Multifunctional.
The DST-Micro 140 unlocks connectivity for your device with SuperSpeed USB, (Micro-) SD Card Slots and a 4k capable HDMI® port.
Pass-through Charging
This multifunctional device with pass-through charging of up to 60W and the 1.4m power delivery cable provides you with an incredibly adaptable and capable docking station.
Plug-and-Play
This micro docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications
Interface: USB Type C to 2x USB Type A / 1x HDMI® / 1x microSD / 1x SD
Supported Bandwidth: HDMI® with 10.2Gbps, USB 3.2 / 3.1 Gen 1 / USB 3.0 (5 Gbps)
Maximum Input Resolution: 3840×2160@30Hz
Maximum Output Resolution: 3840×2160@30Hz
Chipset: AG9311, VL815, AU84612
Compatibility: USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors). Windows, macOS, Linux, Android, ChromeOS
Power Delivery: PD 3.0 up to 60W (20V 3A)
HDCP Support: Yes
Supported Audio: –
Separate Audio Ports: –
Special Features: DisplayPort Alternate Mode, integrated 1.4m USB Type C PD cable
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 2x USB Type A (Female), 1x HDMI (Female), 1x microSD slot, 1x SD slot
Physical Properties
Dimensions WxDxH: 148x36x13mm (5.83×1.42×0.51in)
Housing Material: Aluminium & Plastic
Net Weight: 0.1kg (0.22lb)
Operating Temperature: 5°C – 30°C (41°F – 86°F)
Storage Temperature: 0°C – 40°C (32°F – 104°F)
Humidity: 25 – 60% RH (non-condensing)
Power Requirements: 8W
Colour: Grey & black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85×7.64in)
Gross Weight: 0.1kg (0.22lb)
Warranty (Years): 2
Certificated: CE, FCC, REACH & RoHS, CP65
Packaging Content
USB 3.2 Type C Laptop Micro Docking Station
Lindy Manual
