Description
Nanoleaf 4D Screen Mirror + Lightstrip Kit (TVs & Monitors Up to 85″)
- Ultra Vivid Screen Mirroring
- Trimmable Lightstrip
- Privacy Cover for Camera
- Use with TV Screens or Monitors
Take Your Entertainment Beyond The Screen

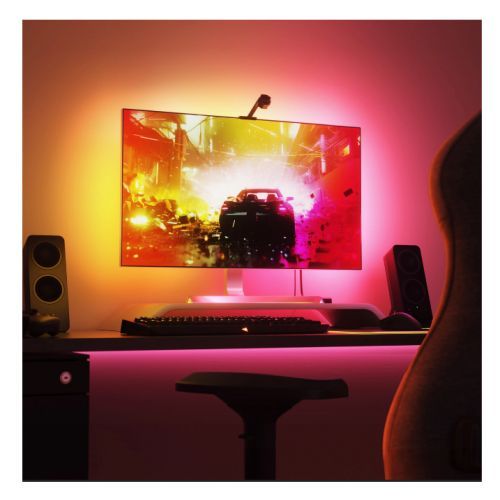

Nanoleaf 4D is a screen mirror camera kit that syncs the colours on your screen onto the addressable gradient LED lightstrip mounted behind it.
Experience the ultra-immersive ″4D″ effect as the vibrant backlighting illuminates your space with the colours from your favourite shows, movies, and video games.
For a levelled-up entertainment experience, enable ″Sync+″ in the Nanoleaf App to extend the screen sync effects across 50+ Nanoleaf RGB lights—like Nanoleaf Shapes and Lines
Your Ultimate Movie Must-Have
- Ultra-Immersive Screen Sync – Get into the action of every movie, TV series, and console game as the colours burst out from the screen to create the most cinematic experience right in your home.
Next-Level Entertainment Starts Here
- Movie Buffs – Grab the popcorn and experience movies like never before with lighting that puts you in the centre of every thriller, drama, comedy, or even horror—from the safety of your couch.
- True Gamers – It’s time for a serious upgrade; get VR levels of immersion, without the goggles—or the migraine. Make it rain with every headshot with lighting so immersive it puts haptic feedback to shame.
- Music Lovers & Karaoke Pros – Feel the beat with sound-reactive mirroring for the front-row concert experience at home. Lights pulse to the sound of your music videos and playlists, perfecting the vibe of any hangout, or taking your karaoke nights to new heights.
- Dial Up the Immersion – Choose the perfect immersion level for whatever you’re watching to take your entertainment from 1 to 100. Start slow with 1D for ambient background lighting or dial it all the way up to 4D for a direct match that delivers maximum impact.
- Turn Up The Music – Activate Rhythm with the touch of a button to turn any immersion level into a sound-reactive audio-visual experience. Lights pulse to the beat to turn your space into a larger than life music visualizer, and bring your music videos and playlists to life.
- Mirror to 50+ Nanoleaf RGB Devices with Sync+ – Go beyond the addressable lightstrip and extend the screen mirror effect across multiple Nanoleaf RGB lights at once to transform your entire space with colour.
A Stunning Glow That Adapts to Your Needs
- 10 Colour Zones Per Metre – Our high resolution addressable gradient lightstrip enhances all ambient lighting and mirroring effects.
- Automatically Adapts to Fit your Screen – With Smart Remapping, lighting effects readjust to fit any size you trim your lightstrip to—automatically.
Simple Set Up & Control
- Easy 3 Step Calibration – Quick setup with the Nanoleaf App. Follow these setup tips & tricks for the best experience!
- Versatile Camera Positioning & Cover – Place your camera either above or below your screen to best suit the layout of your setup. Magnetic cover blocks camera lens when not in use for added peace of mind.
- Customise Your Vibrancy – Choose between more muted cinematic tones or bright popping colours—or fine-tune to your liking with custom adjustments.
- App, Voice & Manual Control – Use the Nanoleaf App for the full list of features, or connect to your desired smart home ecosystem app (control non-screen mirroring functions only).
Plus Your Go-To Nanoleaf Features
- Rhythm Music Visualizer – Watch as your lights dance to the beat of your music.
- Magic Scenes – Generate colour palettes using AI.
- 16M+ Dynamic Colour-Changing Scenes – Explore premade Scenes or design your own!
FAQ
Is there a difference between mounting the camera above or placing it below the screen?
While both placements provide a great screen mirroring experience, sometimes mounting the camera above your screen can slightly improve colour accuracy. If the camera is placed below the screen, make sure it is not in a high traffic area where it is constantly being shifted as it can affect the accuracy of your screen mirror calibration.
Which Scenes react to the colours on the screen?
The 4 Screen Mirror Modes in the Nanoleaf app's “4D” tab all capture the colours on your screen and extend them out to your Nanoleaf RGB lights. You can also enable the “Rhythm” effect for each of these modes as well, to allow them to react to the audio AND visuals from your screen at the same time.
All other Scenes found in the Nanoleaf App or on the 4D Controller such as Colour, Dynamic, and Rhythm Scenes are NON-MIRRORING, as each utilises their own unique colour palettes.
What is Sync+?
Sync+ is a feature that allows you to virtually connect all Nanoleaf RGB lights* in the same space so that you can extend screen mirroring lighting effects across them based on their relative positioning.
You can enable Sync+ within the Nanoleaf App, and choose which of your specific Nanoleaf RGB devices you want to include/exclude from it.
See more detailed instructions on how to set up Sync+ in the Enabling Sync+ section above. *Nanoleaf RGB lights include Nanoleaf Shapes, Lines, Canvas and Light Panels. Essentials will work with Sync+ with an upcoming firmware upgrade but will also need to be on Thread.
Does the camera record any video footage?
The 4D camera does not record, save, or store anything onto the device, the cloud, your phone, or anywhere else. It is simply used to feed colour data to your lights to create the mirroring effect in real-time. Additionally, the camera is only activated during the initial calibration step, and after that, only when a screen mirroring mode is selected.
For extra peace of mind, a magnetic privacy cover is included with the camera in the kit, so you can cover it when not in use if you wish to do so.
Can I cut the addressable Lightstrip?
Yes, but make sure you cut the loose end of the Lightstrip that is NOT connected to the power cable. Trimming the addressable lightstrip to better suit the dimensions of your TV screen or monitor size will help optimise the screen mirroring experience. Lighting effects will automatically remap to the trimmed length.
Description
Specification
- Type: Mirror Lightstrip
- LED Colour: RGB
- Connectivity: WiFi (2.4 GHz b/g/n)
NOTE: 5GHz networks are not compatible with Nanoleaf products. - Features: “Screen Mirror Camera Kit
Backlighting the colours from movies, video games, music etc.
Colour Channel Configuration: Multicolor RGB
Resolution: 30 LEDs per metre
Max Colours: More than 16 million
Colour Zones: 10 zones per metre
Luminous Flux per Metre: 1122 lumens @ 5.2 metre
Dimmability: Yes (via Nanoleaf App, Voice, Controller)
Trimmable Lightstrip
Privacy Cover for Camera” - Compatibility: “For Monitors and TVs up to 85″”
Nanoleaf App:
Control via the Nanoleaf App (Android & iOS) for mobile/tablet or the Nanoleaf Desktop App (Windows & Mac)Compatibility:
Apple Home, Amazon Alexa, Google Home, IFTTT, SmartThings, Razer ChromaClick here for user manual”
- Weight: Controller: 66g
Camera: 60g - Dimensions: Controller: 93.3 x 57.1 x 17 mm
Lightstrip: 12 x 4.8 mm @5.2m
Camera: 31 x 28 x 34 mm
Mount: 181.2 x 56.3 x 50 mm
Corner Brackets: 148.5 x 18 x 17.9 mm
Camera Cap: 29.9 x 27 x 4.6 mm
Camera Cable Length: 1.5m
Lightstrip Cable Length: 1m
PSU Cable Length: 2m - Mounting: Camera: Tape at the bottom of the camera OR via TV mount
Controller: Tape at the bottom of the controller
Lightstrip: Tape at the back of the Lightstrip - Power: Input Voltage: 200V-240V
PSU Output Voltage: 12V2A
Max Power Supply Power: 24W
Max Energy Consumption Per metre of LS: 7.2W - Suitable for Outdoor: No
- Lifetime: “25,000 hours”
- Package Contents: 1 x Screen Mirror Camera
Camera Mount
Magnetic Privacy Cover
Nanoleaf 4D Controller
Addressable Gradient Lightstrip
Power Supply
4 x Lightstrip Corner Brackets - Package Type: Retail
- Package Weight: 1.3000 kg
- Warranty: 2 Years
