Description

RGB White Gaming Build – AMD Ryzen 7 5600XT 8 Core 16 Thread, 3.80GHz (4.80GHz Boost), 16GB RAM, 1TB NVMe, Intel Arc B580 12GB White Graphics, Liquid Cooled, Windows 11 Home – Custom PC

Processor
AMD Ryzen 7 5800XT, 8 Core AM4 Processor, 16 Threads, 3.8GHz up to 4.8GHz Boost, 36MB Cache

Processor Cores
8

Processor Threads
16

Core Clock Speed
3.80GHz

Core Boost Speed
4.80GHz

CPU Cooler
Cooler Master 240mm White Liquid Cooler

Memory
Team 16GB (2 x 8GB) 3200MHz DDR4 DIMM System Memory Grey Heatsink

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Adata Legend 710 (ALEG-710-1TCS) 1TB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2400MB/s, Write 1800MB/s, Heatsink

Format
NVMe

Max Read/Write Speeds
Up to 2400MB/s
Up to 1800MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6Graphics Card, 2800 MHz Base Clock, Dual Fan, White, RGB, 3x DisplayPorts / 1x HDMI Port
Memory
12GB GDDR6
Engine Clock
2800 MHz
Intel XMX Engines
160
Memory Clock
19 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution: 7680 x 4320

Graphics Card I/O
3 x DisplayPort 1.4a
1 x HDMI 2.1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Power Supply
GIGABYTE P750GM 750W PSU, 120mm Smart Hydraulic Bearing Fan, 80 PLUS Gold, Fully Modular, UK Plug, High-Quality Japanese Capacitors, Powerful Single +12V Rail
1 x ATX/MB 20+4 Pin
2 x CPU/EPS 4+4 Pin
4 x PCI-e 6+2 Pin
8 x SATA
3 x 4 Pin Peripheral
1 x 4-Pin floppy

Motherboard
Gigabyte A520M S2H Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

Chassis

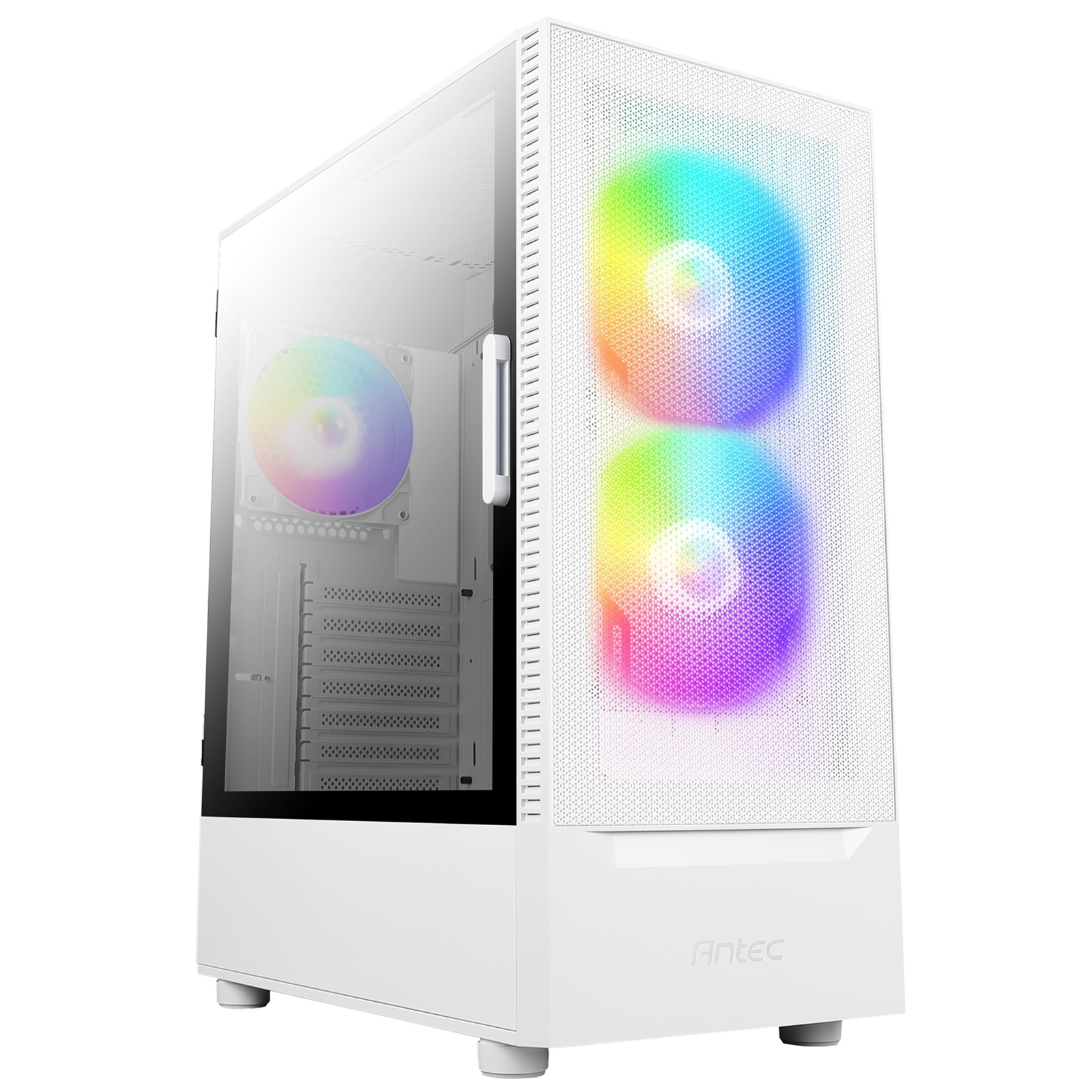

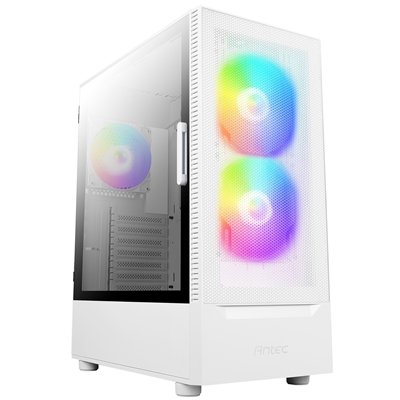

ANTEC NX410 Case, Gaming, White, Mid Tower, 1 x USB 3.0 / 2 x USB 2.0, Tempered Glass Side Window Panel, Addressable RGB LED Fans

Drive Bays
5.25″: 0
3.5″ / 2.5″ Convertible: 2 / 1
2.5″: 3

IO Ports
Power
ARGB Control Button
HD Audio
2 x USB 2.0
1 x USB 3.0

Cooling
Front: 3 x 120mm / 3 x 140mm (2 x 140mm ARGB fans included)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm ARGB fan included)

Dimensions
390 x 210 x 485 mm

Package Weight
9.2 kg

Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
