Description

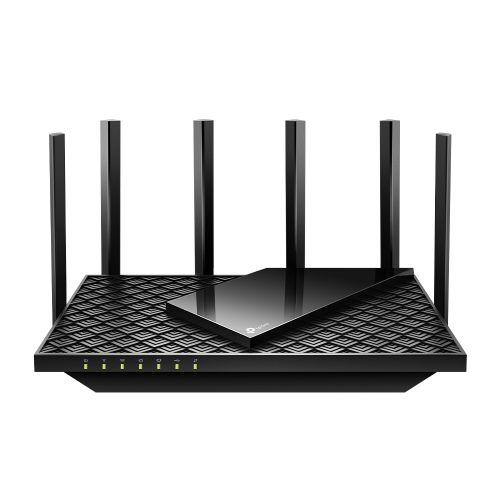

AX5400 Multi-Gigabit WiFi 6 Router
- Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.
- Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
- Connect 100+ Devices – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- Extensive Coverage – 6x antennas and Beamforming ensure broad coverage.
- HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.
- More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
- USB Sharing – 1x USB 3.0 port enables easy media sharing and private cloud building.
- Easy Setup – Set up the router in minutes with the Tether app.
Full Release — Multi-Gig Wired Connections
In addition to stunning wireless speeds, AX72 Pro also provides premium wired connections. A 2.5Gbps port and 1 Gbps Port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s need.
Warp Speed for Smooth 8K Streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at same time. Need to go faster? Hop on 5 GHz with full speed boosting features, to stream multiple 8K videos without lagging.
Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections even in the kitchen and bedroom. High-Power FEM, 6x Antennas, Beamforming, and 4T4R of 5GHz structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Connect More, Stay Fast
Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to fure-proof your home network by providing greater capacity to connect more devices.
OFDMA
Enables differnet devices to share one transmission stream, increasing efficiency.
MU-MIMO
Transmits data to different devices simultaneously using multiple streams.
VPN Client and VPN Server
More Granular VPN Function Usage
When using the VPN Client function, the device connected to the router can directly access the VPN server for remote office and cross-regional access. When using the VPN Server function, external devices can access the VPN server, including remote desktops, NAS, printers, cameras, and other devices in
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
- Home Network Scanner – Real-time network scanner to detect potential threats and security issues.
- Parental Controls – Manage time online and block inappropritate content keeping your familiy safe online.
- Quality of Service – Assign your favorite devices to have the fastest connections for top performance.
TP-Link OneMesh™:
Flexibly Create Whole Home WiFi with Archer AX72 Pro
Want to build a whole-home Wi-Fi? Archer AX72 Pro supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX72 Pro in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick-off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto-schedule.
Description
Specification
- Type: Cable Router
- Connectivity: Wireless
- Wi-Fi Rating: AX5400
- Max Single Band Wi-Fi Rate: 4804 Mbps
- Max Wired Transfer Rate: 2.5 Gbps
- Bands: Dual Band
- Signal Rate: 5 GHz: 4804 Mbps
2.4 GHz: 574 Mbps - Interface(s): 1 x 2.5 Gigabit WAN/LAN Port
1 x Gigabit WAN/LAN Port
3 x Gigabit LAN Ports
1 x USB 3.0 - Standards: IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
IPv4
IPv6 - Frequency: 2.4GHz & 5GHz
- Button(s): Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button - Power Supply: 12 V = 2.5 A
- Antenna(s): 6 x Fixed High-Performance Antennas
- Dimensions: 72.5 x 147.2 x 49.2 mm
- Wireless Functions: OFDMA
Airtime Fairness
DFS
6 Streams
Router Mode
Access Point Mode - Security: WiFi Encryption:
WPA3
WPA2
WPA
WPA/WPA2-Enterprise (802.1x)Network Security:
SPI Firewall
Access Control
IP & MAC Binding
Application Layer GatewayHomeShield Security:
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network ScannerGuest Network:
1 x 5 GHz Guest Network
1 x 2.4 GHz Guest Network - DHCP: Address Reservation
DHCP Client List
Server - Port/NAT Forwarding: Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server - VPN Support: VPN Server:
OpenVPN
PPTP
L2TPVPN Client:
OpenVPN
PPTP
L2TP - Management: Tether App
Webpage - Dynamic DNS: DDNS
- USB Application: “Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server” - Additional Features: See Overview
- Environment: Operating Temperature: 0C°~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing - Package Contents: Wi-Fi Router Archer AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide - Package Type: Retail
- Package Weight: 1.7500 kg
- Warranty: 3 Years
- #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
- #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
