Description

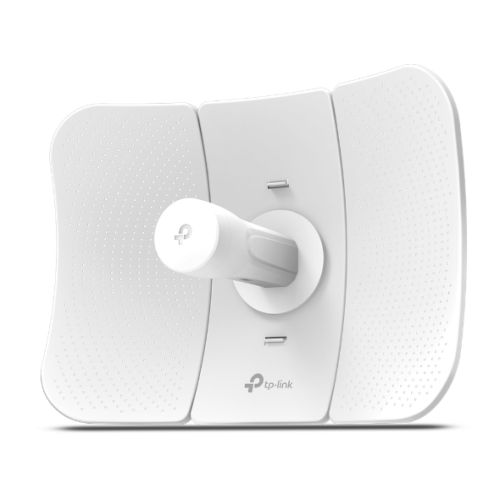

5GHz 150Mbps 23dBi Outdoor CPE
- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
MAXtream TDMA
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.
Stable Structural Design and Flexible Installation
- Snap-lock parts make assembly simple and convenient
- Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
- Sturdy design ensures stability in windy conditions
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
Description
Specification
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- #Hide#Wireless Standard: 802.11n (Wi-Fi 4)
- Bands: Single Band
- Wi-Fi Rating: N150
- Max Single Band Wi-Fi Rate: 150 Mbps
- Wireless Standards: IEEE 802.11a/n
- Antenna(s): “23dBi Antenna
Beamwidth: 7°(Azimuth), 10°(Elevation)” - Protection: 15KV ESD Protection
6KV Lightning Protection - Button(s): Reset Button
- Power Supply: “Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC” - Dimensions: 350 x 255 x 207 mm (W x D x H)
- Suitable for Outdoor: Yes (Outdoor)
- Frequency: 5.15~5.85GHz
- Security: “SPI Firewall/ Ping Forbidden/DoS Protection
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152″
- Management: Discovery and Remote Management
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server - Additional Features: See Overview or manufacturers link for full specifictions
- Environment: Operating Temperature: -40C~70C (-40F~158F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing - Package Contents: Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide - Package Type: Retail
- Package Weight: 1.5000 kg
- Warranty: 2 Years
