Description

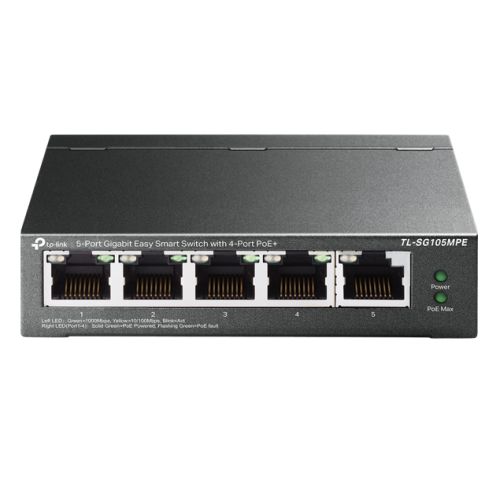

5-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 120 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Multiple Application Scenarios
The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works
Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups
Making Management Easy
TL-SG105MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Supports PoE Power up to 30 W for each PoE port
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. It is fully compatible with more 802.3at PD devices.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Long Product Life with Durable Metal Casing
Interior components of TL-SG105MPE are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105MPE delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 120 W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at” - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
- Dimensions: (WxDxH) 99.8 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2 K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing - Package Contents: TL-SG105MPE
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
