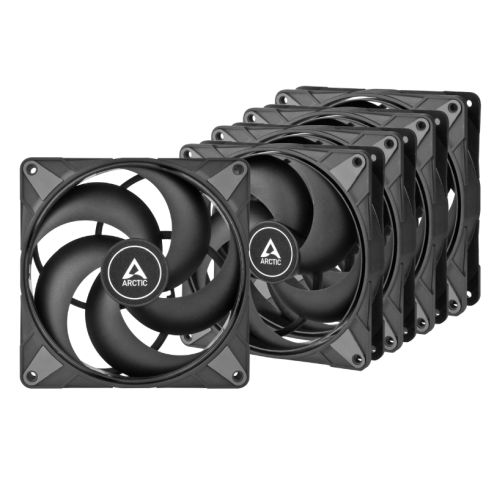

Arctic P14 Max High-Speed 14cm PWM Case Fans (5 Pack), Fluid Dynamic Bearing, 400-2800 RPM, 0dB Mode, Black, Value Pack

54.70 incl. Vat

Arctic P14 Max High-Speed 14cm PWM Case Fans (5 Pack), Fluid Dynamic Bearing, 400-2800 RPM, 0dB Mode, Black, Value Pack

Out of stock

SKU: CF140-ARCP14MAX-5PK Category: Tag:

Description



140 mm High-Speed PWM Fans – 5 Pack

  • Fan Speed: 400–2800 RPM
  • 0 RPM below 3 % PWM
  • Airflow: 95.00 cfm | 161.40 m3/h
  • Static Pressure: 4.18 mm H2O
  • RPM-Control: Pulse Width Modulation – PWM
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage: 12 V DC
  • Start Up Voltage: 3.9 V
  • Current: 0.35 A
  • Cable Length: 400 mm
  • Connector: 4-Pin Connector





Extremely Wide Speed Range
Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range from 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.



Maximum Performance – Without Compromises
The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.



0 dB Mode – Zero rpm
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.



Improved Stability
The P14 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.



Maximum Smoothness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.



Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P14 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.



Description

Specification

  • Type: 14cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Mounting Screws
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting:
  • Weight: 245 g
  • Fan Dimensions: 140 x 140 x 27 mm
    Cable Length: 400 mm
  • Rotation Speed: 400 – 2800 RPM
    0 RPM below 3% PWM
  • Fan Bearing: Fluid Dynamic Bearing
  • Air Flow: 95.00 cfm
  • #Hide#Type 2: Case Fans
  • Noise level: Virtually silent operation
  • Power: Typical Voltage: 12 V DC
    Start Up Voltage: 3.9 V
    Current: 0.35 A
  • Additional Features: See Overview
  • Package Contents: 5 x P14 Max
    20 x Mounting Screws
  • Package Type: Retail
  • Package Weight: 1.4700 kg
  • Warranty: 6 Years
  • #Hide#Multipack: Yes (multipack)

Additional information

Weight 1.4700 kg
EAN
