Description

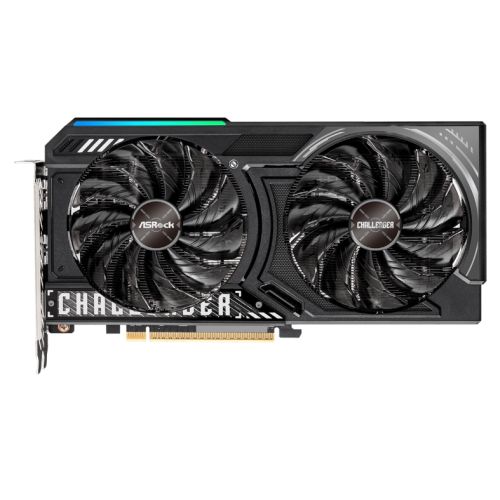

AMD Radeon™ RX 9060 XT Challenger 8GB OC
- Boost Clock: Up to 3290 MHz/ 20Gbps
- Game Clock: 2700 MHz/ 20Gbps
- AMD Radeon™ RX 9060 XT GPU
- 8GB GDDR6 on 128-bit Memory Bus
- AMD RDNA™ 4 Architecture
- 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express5.0 Support
- 1 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1a / 1 x HDMI™ 2.1b
- Dual Fan Design
- Stylish Metal Backplate
- LED Indicator
- LED On/Off Switch
- Striped Axial Fan
- 0db Silent Cooling
- Super Alloy Graphic Card
Dual Fan Design
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
LED Indicators
More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2 for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
Description
Specification
- Chipset Manufacturer: AMD
- Interface: PCI Express 5.0
- Graphics Chipset: AMD RX 9060 XT
- Memory Size: 8GB
- Memory Type: DDR6
- Memory Interface: 128-bit
- Engine Clock: Boost Clock: 3290 MHz
Game Clock: 2700 MHz - Memory Clock: 20 Gbps
- CUDA Cores / Stream Processors: 2048 Stream Processors
- Outputs: 1 x HDMI 2.1b
2 x DisplayPort 2.1a - HDCP Support: Yes
- Resolution: Digital Max Resolution 7680 x 4320
- Multi-GPU Support: None
- Max Display Support: 3
- Cooling: Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
0DB Silent Cooling
Ultra-fit Heatpipes
High-density Metal Welding
Premium Thermal Pad - PSU Requirements: 550W or greater recommended
- Connectors Required: 1 x 8-pin
- Software: AMD Software: Adrenalin Edition
- Additional Features: See Overview
- Dimensions: 249 x 132 x 41 mm
- Accessories: 1 x Quick Installation Guide
- Package Type: Retail
- #Hide#Lighting Effects: Yes
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 1.4000 kg
- Warranty: 2 Year Replacement Warranty
