Description

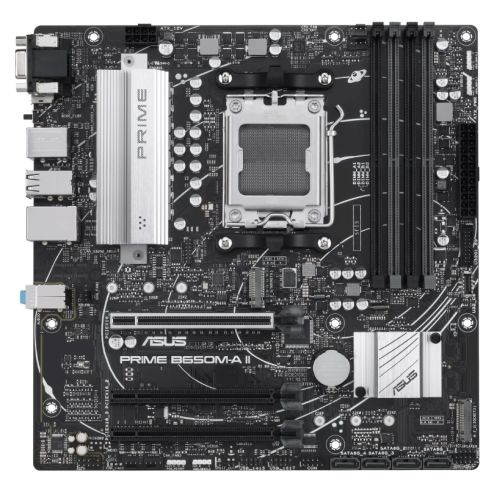

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort, HDMI®, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.
Learn more about ASUS Corporate Stable Model >
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AMD AM5
- Chipset: AMD B650
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: “DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
OptiMem II
“ - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 7600+(OC)
- Maximum Memory: 192GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort - PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 4.0 x16 (support x1 mode)
*Specifications may vary between CPU types - Storage: 4 x SATA III
2 x M.2Ryzen 9000 & 7000 Series CPUs:
M.2_1 (242/2260/2280) – PCIe 5.0 x4
M.2_2 (2242/2260/2280) – PCIe 4.0 x4Ryzen 8000 Series CPUs:
M.2_1 (2242/2260/2280) – PCIe 4.0 x4
M.2_2 (2242/2260/2280) – PCIe 4.0 x4 - RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
- Wireless: –
- LAN: 2.5GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: Rear:
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0Front:
1 x USB 3.2 Gen1 USB Type-C
2 x USB 3.2 Gen1
4 x USB 2.0 - Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB - .: 1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel - Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw Package for M.2 SSD
1 x ACC Express Activation Key Card
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Warranty: 3 years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
