Description

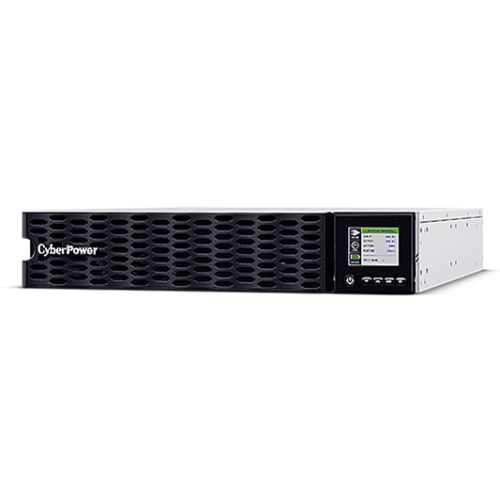

CyberPower Online High Density Rack 6kva 2U, 6000VA/6000W, 1 x Hardwire Terminal Block, Business Software, Rack/Tower
CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs.
The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Tiltable LCD Panel
- Surge and Spike Protection
- Generator Compatible
- Hot-swappable Batteries
- Smart Battery Management (SBM)
- SNMP/HTTP Remote Management Capability
- ECO Mode
- Color LCD Panel
- Quick Charging Technology
- Automatically rotatable LCD
- Critical/Non-critical Load Outlets
- Battery Management Technology
- Extended Battery Module (EBM)
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
Description
Specification
- Type: External UPS
- UPS Topology: Online Double Conversion
- Maximum Capacity: 6000VA / 6000W
- #Hide#Capacity (VA): 6000V A
- #Hide#Capacity (Watts): 6000 W
- Battery Type: Sealed Lead-acid
- Typical Protection: Surge Suppression: 2430 Joules
EMI/RFI Filtration - Transfer Time: 0ms
- Battery Protection: “Overload Protection:
Internal Current Limiting, Circuit BreakerOverload Protection (Line Mode) :
105~125% Load for 1 min, 125~150% Load for 10 secOverload Protection (Battery Mode) :
105~130% Load for 10 sec, 130~150% Load for 2 secOverload Protection (Bypass Mode) :
Circuit Breaker
“ - Input Voltage: Nominal Input Voltage: 200 ~ 240 Vac
Input Voltage Range: 200 ~ 240 Vac - Output Voltage: Configurable
- Recharge Time: 4 Hours
- Runtime: at Half Load: 6.2 minutes
at Full Load: 2.4 minutes - Interfaces: 4 x IEC C13
2 x IEC C19
1 x Hardwire Terminal Block
Output Circuit Breaker
AC Inlet
BM/ENV Port
Serial Port
USB Port
SNMP/HTTP Network Slot
Extended Battery Module Connector
EPO Port - Visual Indicators: “Rotatable Colour LCD Panel Information:
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & LogLCD Setting & Control:
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, LanguageLED Indicators:
Power On
“ - Audible Indicators: “Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery”
- Environment: “Operating Temperature: 32 ~ 104°F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 95 %
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: 23 ~ 113 °F
Storage Temperature: -5 ~ 45 °C
Storage Relative Humidity (Non-condensing): 10 ~ 95%
Storage Elevation: 0-14,764 feet (0-4,500 meters)
Online Thermal Dissipation: 1613 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 43~66 dBA (0~100 % load)” - Dimensions: (WxHxD) 433 x 86.5 x 720 mm
- Weight: 42 kg
- Software: PowerPanel Business (Recommended)
- Additional Features: See Overview
- Accessories: OL6KERTHD UPS
Rackmount Rail
Rackmount Ears
Terminal Cover
Screw Kit
USB Cable
Serial Cable
Users Manual - Package Type: Retail
- Package Weight: 52.1000 kg
- Warranty: 2 Years – direct with CyberPower
